径向分辨率测试图卡TE94

时间:2016-10-17   热度:
  • 品牌:ESSER爱莎/Sine Image
    型号:TE094
    尺寸:可定制
    材料:菲林/高清相纸
    比例:4:3
    类型:反射式/透射式可选

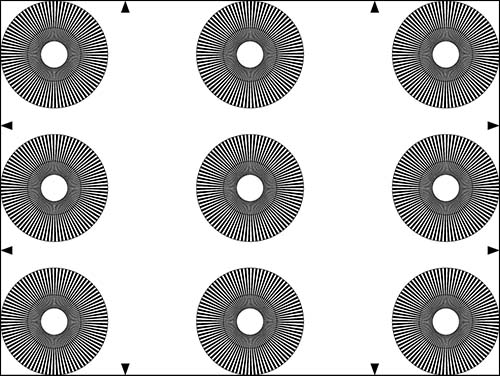

  • The TE94 consists of 9 sector stars of 90 (black and white) sectors each. The diameter of the unresolved middle and the outer diameter are marked by circles. A further marking circle is positioned within each sector star.

    The circles are marking the following resolutions:

    outer circle : 200 TV lines

    middle circle: 400 TV lines

    inner circle: 800 TV lines

    The chart serves for checking resolution over the whole picture area.
